Specifications:
| Size | 10x10x5mm | Cutting Angle | Theta=90°, Phi=23.5° |
| Clear Aperture | central 90% of the diameter | Internal Quality | No visible scattering paths or centers when inspected by a 50mW green laser |
| Flatness | less than λ/10 @ 633nm | Transmitting Wavefront Distortion | less than λ/8 @ 633nm |
| Chamfer | ≤0.2mm at 45° | Chip | ≤0.1mm |
| Surface Quality | better than 10/ 5 to MIL-PRF-13830B | Parallelism | better than 20 arc seconds |
| Perpendicularity | ≤5 arc minutes | Angle Tolerance | Δθ≤0.25°, Δφ≤0.25° |
| Coating | AR/AR@1064nm+532nm | Applications | For SHG@1064nm |
| Quality Warranty Period | one half year under proper use |

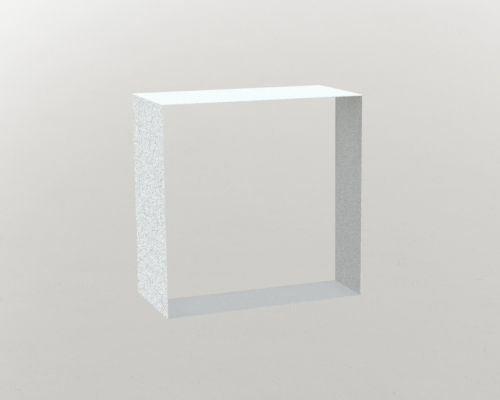

KTP Crystals 10x10x5mm for SHG@1064nm, Code: 20203-011
Potassium Titanyl Phosphate (KTiOPO3 or KTP) is an excellent optical crystal suitable for use in many optical systems. It has a high nonlinear coefficient and stable physical property. Its most popular application is as a frequency doubler of 1064nm to generate 532nm laser. KTP's properties also make it superior for electro-optic modulation (EO components), optical parametric generation (OPO or OPA components). KTP crystals are widely used in commercial and military lasers including laboratory and medical systems, range-finders, lidar, and industrial systems.
Size up to 20x20x40mm^3 and length up to 60mm
Coating options: Dual Wavelength AR, Broadband AR, High Transmission, High Reflection, Partial Reflection
