Specifications:
| Clear Aperture | 12mm |
| Wavelength | 694nm |
| Dimension | Custom |
| Extinction Ratio@1064nm | >2500:1 |
| Connector | BNC high voltage connector |
| Insertion loss | <3% |
| Quarter Wave Voltage | ~2800V |
| Damaging Threshold | >800MW/cm^2@1064nm,10ns,10Hz homogeneous intracavity laser light beam with no hot point |

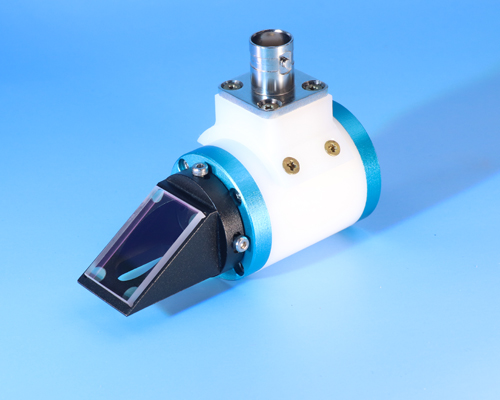

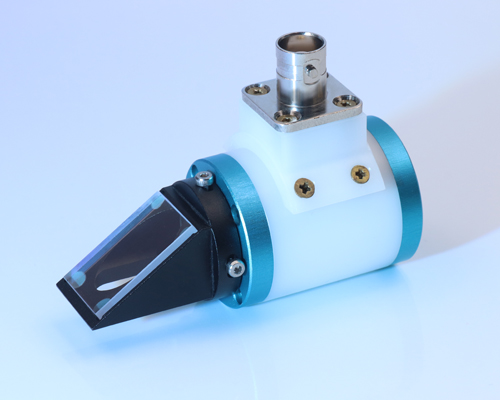

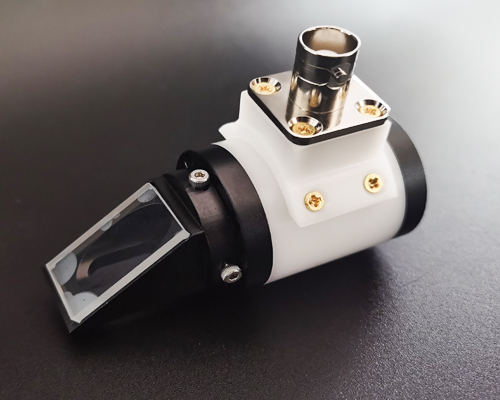

This one module of DKDP pockels cells features BNC high voltage connector design which ensures convenience of plugging-in and pulling out. The housing of the pockels cell is integrated with quartz crystal polarizer and this module is particularly commendable for 694nm ruby aesthetic laser systems.
Hangzhou Shalom EO offers series of DKDP pockels cells with high deuteration (>98%), low capacitance and fast rise time and high transmission, high extinction ratio, the largest aperture of 50mm is available.
Application Notes:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including:
Application Notices on DKDP Series Q-switch:
