Specifications:
| Deuteration of DKDP Crystals | >98% | Aperture | 10mm |
| Wavelength | 1064nm | Dimension | Φ25x39mm |
| Extinction Ratio | 2500:1 | Wavefront Distortion | Lambda/8@633nm |
| Capacitance | ~3pF | Quarter Wave Voltage | ~3200V |
| Transmission (@1064nm) | >98% | Coating | AR/AR@1064nm |
| Damaging Threshold | > 800MW/cm2 @1064nm, 10ns, 10Hz |

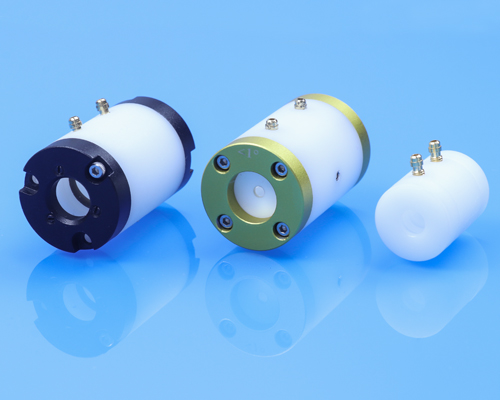

DKDP or KD*P crystals have high electro-optic coefficients, which makes well-suited for pockels cells Q-switches applications. DKDP crystals also have good transmission at UV to 1.1µm, makes the DKDP pockels cells suitable for applications with wavelengths from the UV to approximately 1.1 µm .
Hangzhou Shalom EO offers the DKDP pockels cells with output aperture from 6mm-12mm, some types of stocked pockels cells are available in fast delivery and low cost.
Application Notes:
With excellent physical and optical property, DKDP series Pockels cells are widely used in laser systems with large caliber, high power and narrow pulse width. They are among the optimal E-O Q-switches used in pulse laser systems, including:
Application Notices on DKDP Series Q-switch:
