Specifications:
| Material |
YVO4 |
Wavelength Range |
500~4000 nm |
| Aperture Size |
ɸ15mm |
Extinction Ratio |
<5x10-6 |
| Seperation Angle |
>20° |
Surface Quality |
20 / 10 S/D |
| Parallelism |
<1 arc Min |
Beam Deviation |
< 3 arc minutes |
| Wavefront Distortion |
λ /4@633nm |
Damage Threshold |
>200MW/cm2@1064nm, 20ns, 20Hz |
| Coating |
Single MgF2 |
Mount |
Black Anodized Aluminium |
| Mount Size |
ɸ30x23mm |
|
|

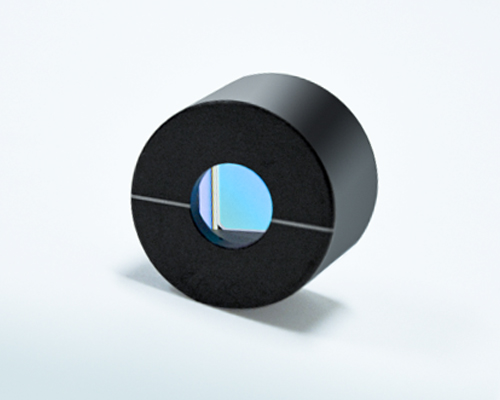

Wollaston Prism, YVO4, Dia 15.0mm, >20°, 500-4000nm with Round Mount, Code: 20704-014.
A Wollaston Prism, or Wollaston polarizer is a polarization optical component consisting of two right-angle prisms with their optical axes aligned in orthogonal directions. Wollaston Prisms switch up the ordinary ray and extraordinary ray and symmetrically deviates them at the exit.
Hangzhou Shalom EO offers Standard and Custom Versions of Wollaston Prisms, made from Alpha-BBO, Calcite, YVO4, and Quartz. The products feature a cemented architecture. The separation angles are diverse, comprising 2°, 15°, 18°, and 20°, while other separation angles are procurable upon request.
YVO4
500-4000нм
ɸ15мм
>20°
<5x10-6
ɸ30x23мм
$680
4 недели
Кристаллы YVO4
- Широкий прозрачный спектральный диапазон от 0,4 мкм до 5 мкм.
- Большое двойное лучепреломление
- Отличные механические и физические свойства
- Области применения: волоконно-оптические изоляторы и циркуляторы, вытеснитель луча, поляризаторы Глана, другая поляризационная оптика.
...
