$38.50
Specifications:
| Lens Form | Plano-convex Cylindrical Lens | Material | N-BK7 |
| Dimension(mm) | Dia 30 +0.0/-0.1 x Length 32 +0.0/-0.1 | Design Wavelength(nm) | 587.6 |
| Effective Focal Length EFL(mm) | 10±1% | Back Focal Length BFL(mm) | 56.13 |
| Coating | 350-650nm AR Coating | Surface Quality(S/D) | 60/40 |
| Irregularity@632.8nm | λ/2 | Centration Error(arc min) | ≤3 |
| Center Thickness | 5.87±0.2 | Edge Thickness | 2.0±0.2 |
| Curvature Radius R1(mm) | 31.01 | Clear Aperture | >90% |
| Protective Chamfer | 0.2mmx45° |
EFL10mm Dia30mmxLength32mm N-BK7 Plano Convex Cylindrical 350-650nm AR Coating,
Code: 1111-037.

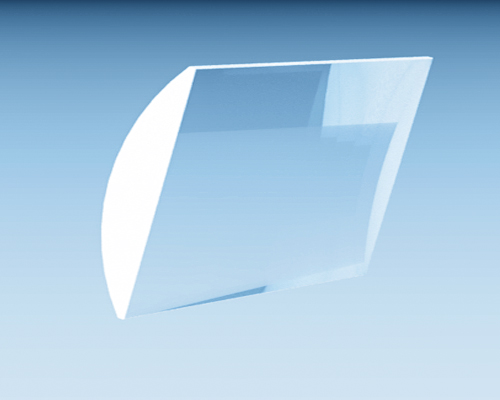

Plano-Convex Cylindrical Lens is a plano-convex optical lens in columnar form, with positive focal lengths,
condensing, or expanding light in 1 dimension (i.e. into one thin line).
Hangzhou Shalom EO offers stocked Plano-Convex Cylindrical lenses.
