Specifications:
| Wavelength | 545nm±1nm | Output Power | 200-300mW |
| Mode | Near TEM00 | Operation | CW or Modulation |
| Beam Divergence | ＜10mrad | Power Stability | ＜±3%@3hrs |
| Temperature Stabilizing | TEC | MTTF | 10000 Hours |
| Storage Temperature | 10-50℃ | Dimension | 50x40x18mm |

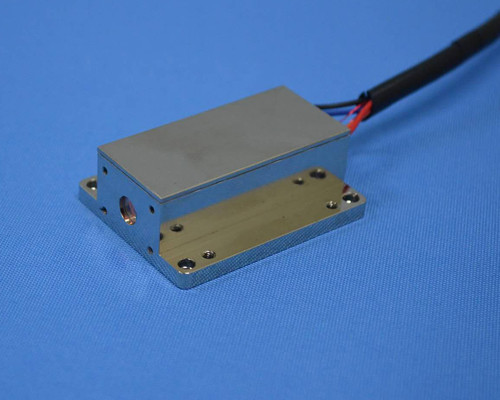

MgO:Periodically poled lithium niobate (PPLN) waveguides are integrated with the Pumping LD and Nd:YVO4 or Nd:YAG crystals and optics , they are a compact and tiny sized type of laser modules, easy to be assemblied in your whole laser systems. Hangzhou Shalom EO offers a variety of laser modules with MgO:PPLN waveguides, including: 473nm, 532nm,545nm, 561nm and 671nm, with different output power and beam quality.
