Optical Property
| Magnification | 0.6X to 3X | Calculated Average Transmission | >85% |
| Aperture Number | 0.15 to 0.48 | Operating Temperature Range | -10℃ to +50℃ |
| Operating Wavelength Range | 8μm to 12μm | Object Distance | 16mm |
| Coating on Front Surface Exposing to Air | AR | Distortion (Diagonal FOV) | <5% |
Mechanical Property
| Focusing Mechanism | Manual | Installation Way | Screw thread connection |
| Weight | / | Flange Focal Distance | 13mm |
| Materials of Lens Housing | Anodized aluminium | Connector | M34x0.75 |

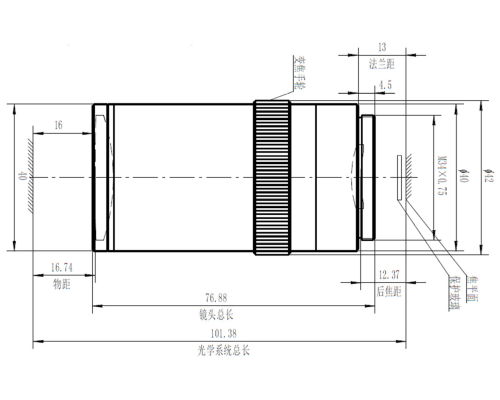

| Max. Dimensions (Diameter x Length) | ɸ40x76.88 | Sealing Grade | IP54 |
| Observe Area | 384x288 | ||
| 25μm | 16mmx12mm to 3.2mmx2.4mm |
