Specifications:
| Focal Length | 8.0mm | F Number(#) | 0.8 |
| FOV(H) | 61.9 degree | FOV(V) | 48.5 degree |
| Wavelength Range | 8~12 micro | Focus Range | Fixed |
| Detector | 384x288-25μm |

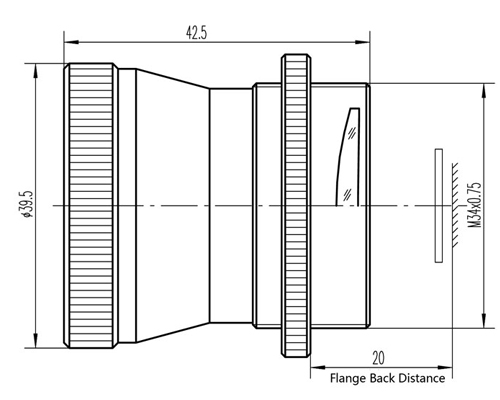

The lens module is designed for 384x288-25μm detectors, with a fixed 8mm focal length and an f-number of 0.8, compact structure and lightweight.
