Optical Parameters:
| Magnification | 2x |
| N.A.(Numerical Aperture)* | 0.3 |
| (EFL)** | 23.7mm |
| Wavelength | 8μm~12μm |
| Detector | 640x480-17μm |
| Image Size | 10.88mm x 8.16mm |
| O.D. (Objective Distance)*** | 50mm (48mm~52mm) |
| Objective Size | 5.44mm x 4.08mm |
| External Coating | AR |
| Average Transmittance | >92% |
| Distortion | Maximum D-FOV Distortion:1.8% |
Mechanical Specification:
| Dimensions | Length:75.52,Diameter:Ф43 |
| Sealing | IP54 |
| Mount | M34x0.75-6g |
| Back Flange Distance | 13mm |
| Housing Material | Aluminum, Black anodized |
| Operation Temperature | -15°~ +50° |
| Storage Temperature | -25°~ +60° |
| Weight | - |

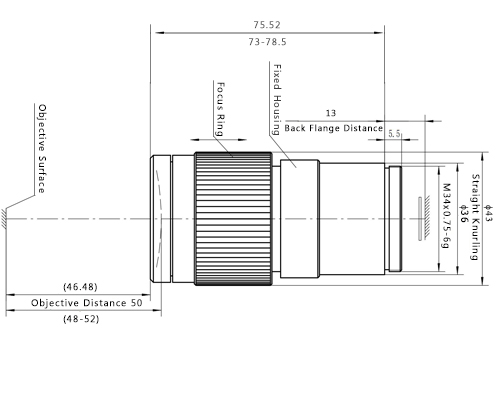

Drawing:
Testing Results and Curves:
1. 20°MTF(@29lp/mm)
2. 20°field curvature and distortion
3. Vignetting
4. Relative Illumination
