| Focal Length | 8mm | F Number(#) | 0.8 |
| FOV(H) | 61.9 degree | FOV(V) | 48.5 degree |
| Wavelength Range | 8~12 micro | Focus Mechanism | Fixed |
| Detector | 384x288-25μm |

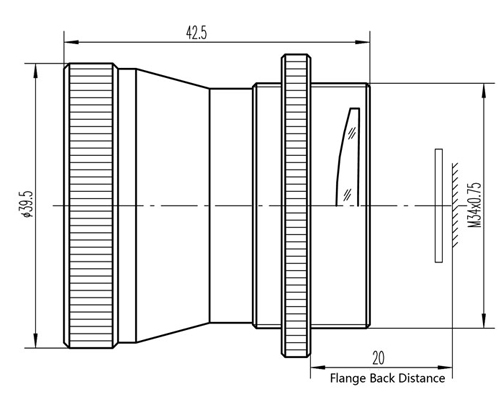

The lens modules is designed for 384x288-25μm detectors, with 8mm focal length and f number of 0.8, small size and light weight.
