| Focal Length | 7.5mm | F Number(#) | 1.0 |
| FOV(H) | 80.1 degree | FOV(V) | 56.3 degree |
| Wavelength Range | 8~12 micro | Focus Range | ∞~ 0.3M |
| Detector Size | 384x288-25μm |
The lens modules is designed for 384x288-25μm detectors, with a 7.5mm focal length and f number of 1.0, large FOV angle and compact dimension.

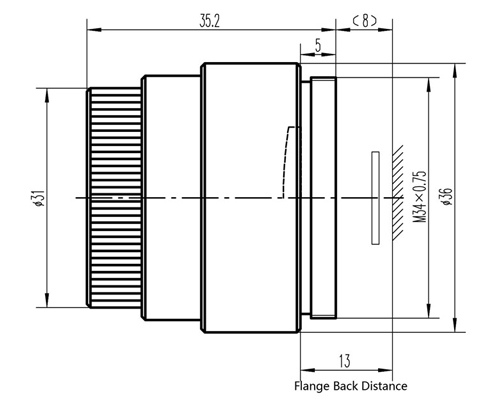

Drawing:
