Optical Parameters:
| Focal Length | 90mm/275mm | Calculated Average Transmission | >84% |
| F/# | 1.0/1.2 | Operating Temperature Range | -40℃ to +60℃ |
| Operating Wavelength Range | 8μm to 12μm | Minimum Focus Range | 5m /20m |
| Coating on Front Surface Exposing to Air | DLC | Distortion (Diagonal FOV) | <1% |
Mechanical Specifications:
| Focusing Mechanism | Motorized | Installation Way | Flange |
| Weight | / | Flange Focal Distance | 20mm |

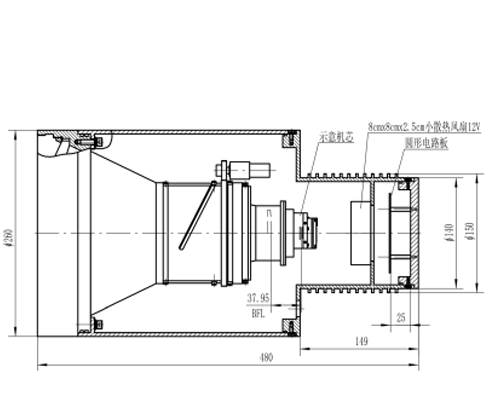

| Materials of Lens Housing | Anodized aluminium | Connector | Refer to drawing |
| Max. Dimensions (Diameter x Length) | ɸ260x480 | Sealing Grade | IP67 |
Electronics:
| Zoom, focus mechanism | DC gear motor control | Zoom, focus position feedback | Encoder motor |
| Zoom, focus driving voltage | 12V DC |
FOV-Sensor Size:
| FOV(H X V) | 384x288 | 640x480 |
| 12μm | 2.9° /0.96° | 4.89°/1.6° |
| 17μm | 4.1° /1.3° | 6.9°/2.2° |
| 25μm | 6.1° /2.0° |
