Optical Property
| Focal Length | 38mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 3m to infinite | Distortion (Diagonal FOV) | <1% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | / |

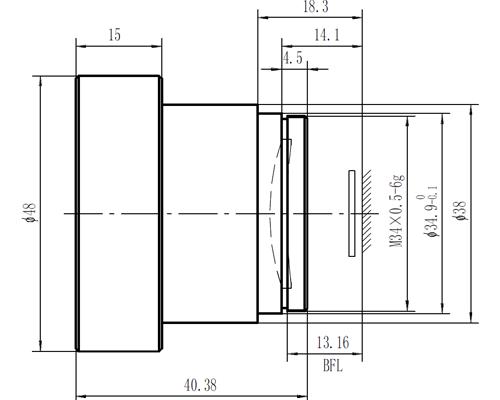

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ48x40.38 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 9.6mm |
| Connector | M34x0.5-6g | Sealing grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 2.9°x2.2° | 5.8°x4.3° | 6.9°x5.2° | 11.5°x8.7° | 18.4°x13.8° |
| 17μm | 4.1°x3.1° | 8.2°x6.1° | 9.8°x7.3° | 16.2°x12.2° | |
| 25μm | 6x4.5° | 12°x9° | 14.4°x10.8° |
