Optical Property
| Focal Length | 27mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 1m to infinite | Distortion (Diagonal FOV) | <1% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | <40g |

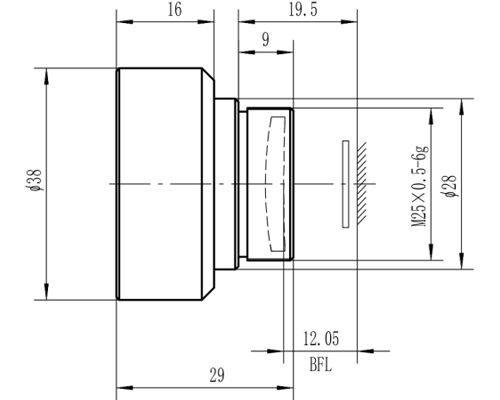

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ 38x29 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 10.5mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 4.1°x3.1° | 8.1°x6.1° | 9.8°x7.3° | 16.2°x12.2° | |
| 17μm | 5.8°x4.3° | 11.5°x8.6° | 13.8°x10.4° | 22.8°x17.2° | |
| 25μm | 8.5x6.4° | 16.9°x12.7° | 20.2°x15.2° |
