Optical Property
| Focal Length | 12.8mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | DLC |
| Calculated Average Transmission | >92% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 0.2m to infinite | Distortion (Diagonal FOV) | <1% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | <30g |

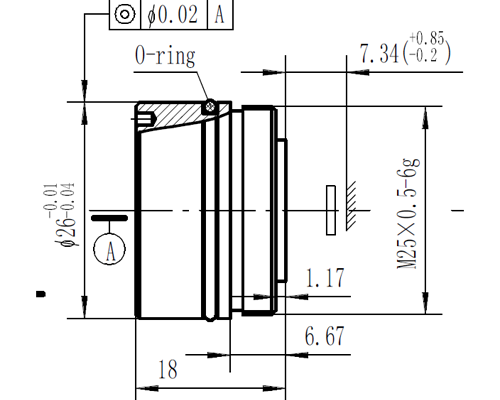

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | ɸ26x18 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 8.51mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 8.6°x6.4° | 17.1°x12.8° | |||
| 17μm | |||||
| 25μm |
