Optical Property
| Focal Length | 12.3mm | F/# | 1.0 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | DLC |
| Calculated Average Transmission | >84% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 0.2m to infinite | Distortion (Diagonal FOV) | <14% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | <30g |

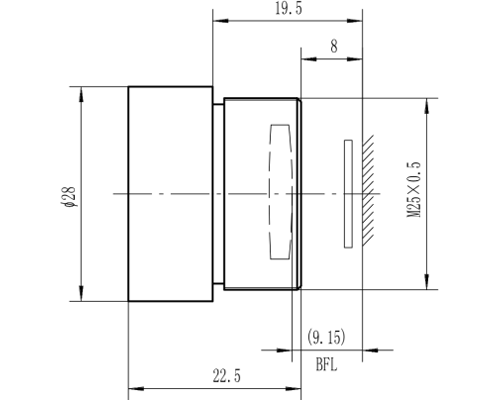

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | ɸ28x22.5 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 8mm |
| Connector | M25x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 8.3°x6.2° | 16.6°x12.5° | 19.8°x14.9° | 32.4°x24.6° | |
| 17μm | 11.8°x8.8° | 23.3°x17.6° | 28.5°x21.4° | 48.3°x35.8° | |
| 25μm | 17.2°x13° | 33.7°x25.6° | 42.3°x31.5° |
