Optical Property
| Focal Length | 100mm | F/# | 1.2 |
| Operating Wavelength Range | 8μm to 12μm | Coating on Front Surface Exposing to Air | AR |
| Calculated Average Transmission | >88% | Operating Temperature Range | -40℃ to +60℃ |
| Focus Range | 10m to infinite | Distortion (Diagonal FOV) | <2% |
Mechanical Property
| Focusing Mechanism | fixed | Weight | 500g |

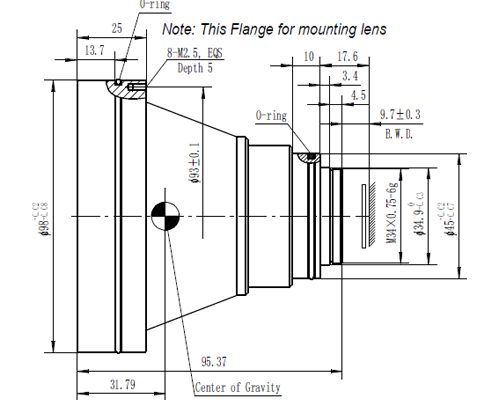

| Materials of Lens Housing | Anodized aluminium | Max. Dimensions (Diameter x Length) | Φ92x95.37 |
| Installation Way | Screw thread connection | Back Working Distance (B.W.D) | 9.7mm |
| Connector | M34x0.5-6g | Sealing Grade | IP67 |
| FOV(H X V) | 160x120 | 320x240 | 384x288 | 640x480 | 1024x768 |
| 12μm | 1.1°x0.8° | 2.2°x1.7° | 2.6°x2° | 4.4°x3.3° | 7°x5.3° |
| 17μm | 1.6°x1.2° | 3.1°x2.3° | 3.7°x2.8° | 6.2°x4.6° | 9.9°x7.4° |
| 25μm | 2.3x1.7° | 4.6°x3.4° | 5.5°x4.1° | 9.1°x6.9° |
