Specifications:
| Type | Plano-convex Lens | Material | UV Fused Silica |
| Diameters(mm) | 75.0(+0.0/-0.1) | Design Wavelength(nm) | 587.6 |
| Effective Focal Length EFL(mm) | 90.00±1% | Back Focal Length BFL(mm) | 71.56 |
| Coating | Uncoated | Surface Quality(S/D) | 40/20 |
| Irregularity@632.8nm | λ/4 | Centration Error(arc min) | ≤3 |
| Center Thickness(mm) | 26.9±0.1 | Edge Thickness(mm) | 3.0±0.1 |
| Curvature Radius R1(mm) | 41.26 | Clear Aperture | 90% |
| Protective Chamfer | 0.2mmx45° |
|
|

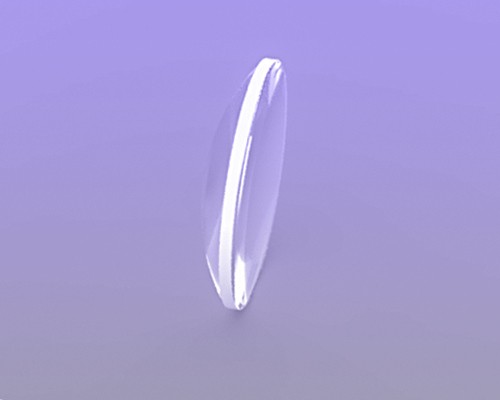

Dia75.0mm EFL90mm UV Fused Silica Plano Convex Lens Uncoated, Code: 1102-133
Plano-Convex (PCX) Lenses have a positive focal length, making them ideal for collecting and focusing light in imaging applications. Fused Silica is often used in applications from Ultraviolet (UV) through the Near-Infrared (NIR). Its low index of refraction, low coefficient of thermal expansion, and low inclusion content make it ideal for laser applications and harsh environmental conditions.
Hangzhou Shalom EO offers stocked and custom UV Fused Silica Plano Convex Lenses.
